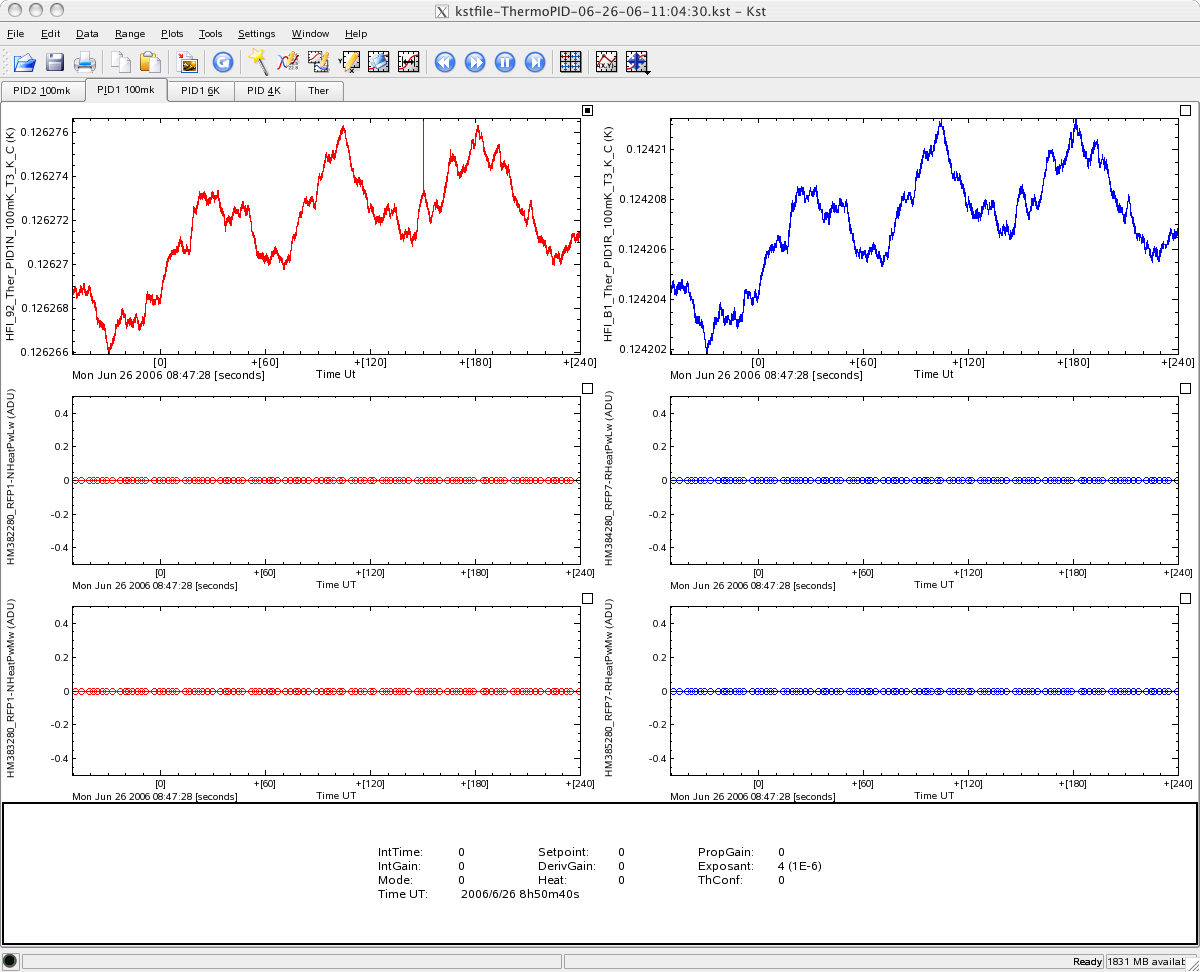

The following session was produced with the command:
ThermoPID /data_copy/bases_PFM_CALIB2/dbPFM -units='k'
|
ThermoPID |
| Usage: | ThermoPID [options] [Directory] |
| Description : | display all PID thermometers and associated Heater + HK parameters |
| Select Sample option: | |
| -start=START | first sample (DEFAULT is to read from end) |
| -t0=TIME | UT time of first sample : [[[[[[cc]yy:]mm:]dd:]HH:]MM[.SS]] |
| -dt=TIME | Length in time of the data loaded in memory : [[[[[[cc]yy:]mm:]dd:]HH:]MM[.SS]] |
| -boxcar=NUM | number of sample averaged together (DEFAULT is 0) |
| -num=NUM | number of sample read (DEFAULT is 50000) (-1 means read to end / realtime) |
| Select Data Type option: | |
| -units=UNITS | o[hm] | v[olt] | k[elvin] (default is ADU) |
| Other option: | |
| -file=FILE | will write the kst file in FILE and will not launch KST |
| -dtpng=sec | time in seconds between each screen capture |
| -help | display this help |
| -png=FILE | save periodically a screen capture as a PNG file |
| Arguments: | |
| Directory | The directory of the database. if Directory is omitted, allchannel will use the one used by an active qlaclient |
|
The following session was produced with the command: ThermoPID /data_copy/bases_PFM_CALIB2/dbPFM -units='k' | |
