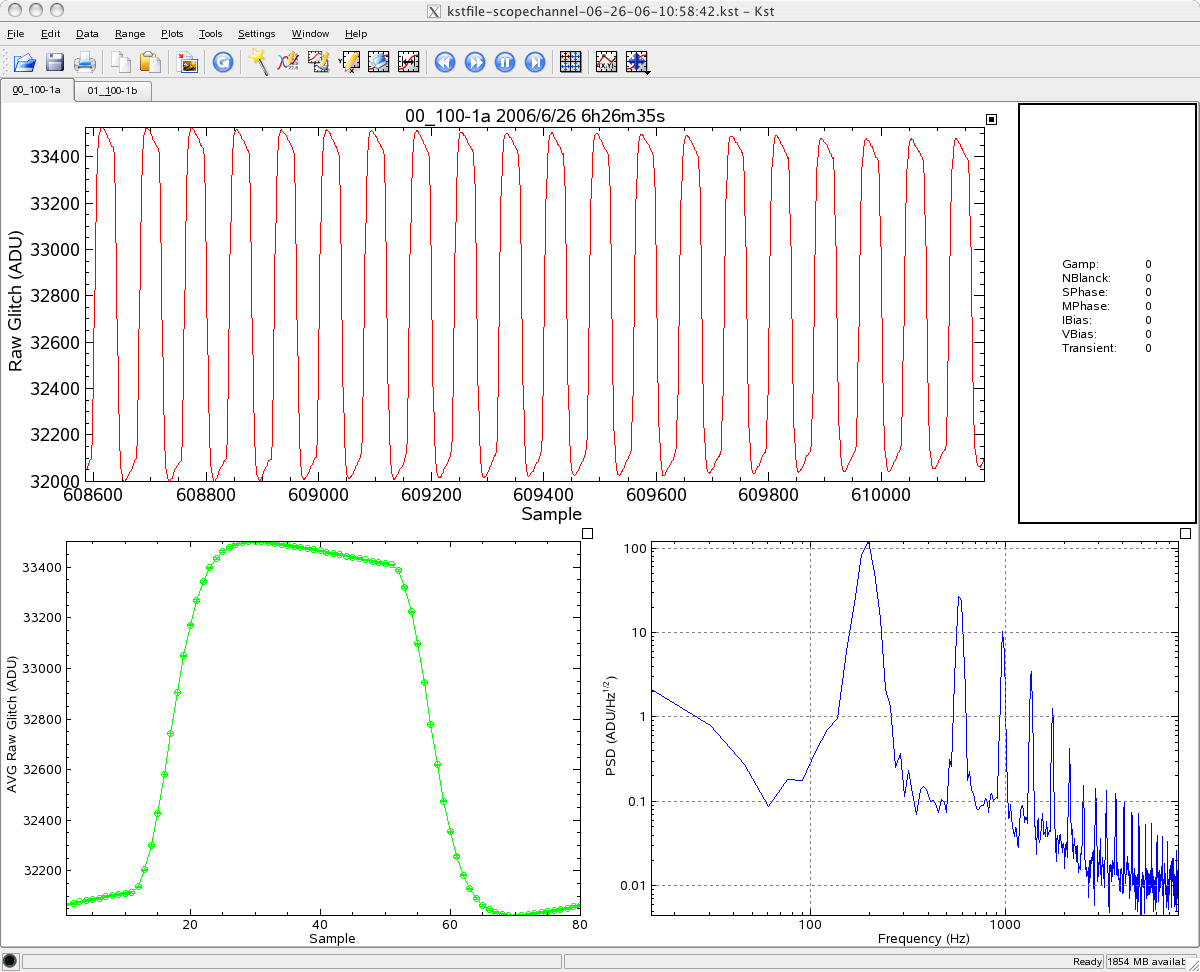

The following session was produced with the command:
scopechannel -bc="00 01" /data_copy/bases_PFM_CALIB2/dbPFM -psd -hsk
|
scopechannel |
| Usage: | scopechannel [options] [Directory] |
| Description : | display one channel per window (Raw Glitch signal, PSD, HSK). The Raw Glitch of several period is shown as well as the average |
| Select Channel option: | |
| -freq="frequency list" | select frequencies |
| -belt="belt list" | select belts |
| -bc="BC list" | select belt-channel |
| -other | select all the other channels |
| -all | select all channels (equivalent to -bolo -thermo -other) |
| -bolo | select all the bolometer channels |
| -thermo | select all the thermometer channels (used with Tchoice option - T1 by default) |
| Select Sample option: | |
| -start=START | first sample (DEFAULT is to read from end) |
| -t0=TIME | UT time of first sample : [[[[[[cc]yy:]mm:]dd:]HH:]MM[.SS]] |
| -nbperiod=nb | number of period of Raw Signal in memory (default is 20) |
| -dt=TIME | Length in time of the data loaded in memory : [[[[[[cc]yy:]mm:]dd:]HH:]MM[.SS]] |
| -num=NUM | number of sample read (DEFAULT is 8192) (-1 means read to end / realtime) |
| Select Data Type option: | |
| -raw | Use Raw Scientific Signals instead of averaged signal |
| -cv | Use Compression Validation Signals instead of averaged signal |
| Display option: | |
| -charsize=charsize | Character size of labels |
| -psd | build a window with the PSD of averaged signal |
| -pmin=VALUE | set the minimum value of the Yaxis for PSD (default is min(PSD)) |
| -pmax=VALUE | set the maximum value of the Yaxis for PSD (default is max(PSD)) |
| -hsk | display HSK informations |
| Other option: | |
| -file=FILE | will write the kst file in FILE and will not launch KST |
| -dtpng=sec | time in seconds between each screen capture |
| -help | display this help |
| -png=FILE | save periodically a screen capture as a PNG file |
| Arguments: | |
| Directory | The directory of the database. if Directory is omitted, allchannel will use the one used by a qlaclient |
|
The following session was produced with the command: scopechannel -bc="00 01" /data_copy/bases_PFM_CALIB2/dbPFM -psd -hsk | |
