ISM: Mars

PAVonis session

Description

High resolution session (~7 km / pixel) from pericenter of the transfer orbit (elliptical with apocenter lowered).

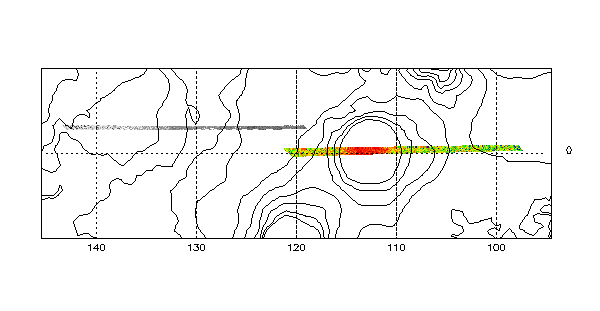

Window on Pavonis Mons, transect across the caldera.
The secondary science session is pointing outside the disk (dark sky).

Observations

Name	Date	Spectra	Window size	Estimated local time	Phase angle	Solar Meridian	Ls	Mars-Sun dist (au)
PAVonis	08/02	2365	296 x 8	10:15-12:30	2.8° - 4.2°	100°	350.5°	1.547

Orbit

Mean distance (km)	Eccentricity	Inclination (°)	W (°)	w (°)	Time & day of pericenter
44490.10	0.904559	1.0230	191.451	77.252	5:52:42, 8/2/1989

Special corrections

Dark current file: fond0802.dat
Gain = 1
Focal plane temperature = -71.2°C
Shift in coordinates: Dlong = -3.6°, Dlat = 0.15°
High detector temperature, second level temperature correction is required

Files

	Telemetry file	Edited data	Calibrated data	Atmosphere removed	Coordinates	Altimetry file
Data file	Mars0802.dat	PAVEVEN.EDT PAVODD.EDT	PAVEVEN.CAL PAVODD.CAL	PAVEVEN.ATM PAVODD.ATM	PAV_COOR.DAT	PAVALT.DAT
Label	RAW_DATA.LBL	PAV_EDT.LBL	PAV_CAL.LBL	PAV_ATM.LBL	MAR_COOR.LBL	TOPO.LBL
